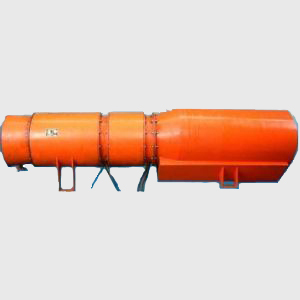

CSY series hydraulic wet dust collector

CSY系列液动湿式除尘器主要是安装在掘进机机面上与掘进机配套使用。该系列除尘器是通过掘进机液压系统富裕的高压油驱动除尘器液压马达带动风机叶轮高速旋转，由此产生的抽吸负压将含尘气流吸入除尘器，经除尘器内的喷雾、过滤、捕尘和脱水后得到洁净风流由排风口排出，从而达到净化含尘风流的目的。

    CSY series hydraulic wet dust collector is installed and supporting the use of tunneling machine in tunneling machine surface. The dust collector is drives the fan impeller rotating speed through the high-pressure oil the roadheader slewing hydraulic system of hydraulic motor driven rich dust suction, resulting the dusty gas inhalation of dust collector, the dust remover spray, filter, dust and dehydration after getting clean air flow discharged from the air outlet, so as to achieve the purpose of purifying dusty airflow.

技术特点

Technical characteristics

（1）集湿式洗涤、过滤、旋流、水膜除尘原理于一体，总粉尘除尘效率≥98%，呼吸性粉尘除尘效率高达85%以上；

(1) sets of wet washing, filtering, swirl, water film dust removal principle in one, the total dust removal efficiency is more than 98%, respirable dust removal efficiency up to 85% or more;

（2）采用离心分离原理，脱水效率高，达95%以上；脱水器结构为一圆形通道，不会堵塞；

(2) by centrifugal separation principle, high dewatering efficiency, more than 95%; dewatering device structure is a circular channel, not plug;

（3）稳定性，采用高效水质过滤器过滤煤矿井下防尘用水，其过滤精度可达100μm以下，采用防堵喷嘴，喷嘴不易被堵塞；

(3) stability, efficient use of water in coal mine dust water filter, the filtering precision of less than 100 m, the anti clogging nozzle, the nozzle is not easy to be blocked;

（4）风量可调性，通过调节供油量，可实现除尘器吸风量的无级变化，获得不同的处理风量，更好地与工作面的风量匹配；

(4) air volume adjustable, through the adjustment of supply, stepless change can realize dust collector suction volume for volume, different, match better with the wind;

（5）使用方便，具有体积小，质量轻、操作维护简单等特点。

(5) easy to use, has the advantages of small volume, light weight, simple operation and maintenance etc..

主要技术参数

Main technical parameters

规格 CSY-180 CSY-230E CSY-500E

The specification                               CSY-180            CSY-230E          CSY-500E

处理风量 （m3/min） 120～180 180～250 350～550

Air volume (m3/min)                              120 ~ 180          180 ~ 250          350 ~ 550

工作阻力 （Pa ） 1500 1800 1800

Working resistance (Pa)                          1500                1800               1800

除尘效率 （% ） ≥98 ≥98 ≥98

The dust removal efficiency (%)                    ≥ 98              ≥ 98                 ≥ 98

呼吸性粉尘除尘效率（%） ≥85 ≥85 ≥85

The dust removal efficiency of respirable dust (%) ≥ 85               ≥ 85                ≥ 85

脱水效率（％） ≥95 ≥95 ≥95

The dehydration efficiency (%)                     ≥ 95               ≥ 95                ≥ 95

耗水量 （L/min ） <15 <20 <25

Water consumption (L/min)                          <15                <20                  <25

要求油压（MPa） ≤10 ≤10 ≤16

Requirements for hydraulic (MPa)                   ≤ 10               ≤ 10                 ≤ 16

要求油量（L/min） ≤50 ≤100 ≤155

The requirement of oil quantity (L/min)            ≤ 50               ≤ 100                 ≤ 155
