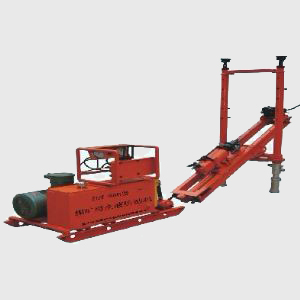

ZDY-650 drilling rig


1 Purpose and scope of use

1 用途及使用范围

1.1 ZDY-650 type coal mine (hereinafter referred to as the drill) is mainly used for coal mine gas rock solid coefficient f ≤ various coal seam, 8 rock pumping (PAI) put hole, grouting hole, hole, the outburst coal seam water injection pressure relief holes, holes and other engineering geological exploration hole.

用该钻机施工，要求钻场断面大于6.5 m2，高度大于2.3m，宽度大于2.8m 。

The drilling machine, drilling section for more than 6.5 m2, height is greater than 2.3m, the width is greater than 2.8m.

2 主要结构和工作原理

2 of the main structure and working principle

2.1 钻机整体结构及液压系统管路连接。钻机主要由泵站、动力头、机架、立柱框架、操纵台和钻具等6大部分组成。

Line 2.1 rig structure and hydraulic system. Drill consists of pumping station, the power head, frame, frame column, console and drill consists of 6 parts.

2.2 泵站（ZDY01-0）

2.2 pumping station (ZDY01-0)

泵站主要由电动机、双联齿轮油泵、油箱、溢流阀、精、粗滤油器、冷却器及底座等零部件组成。其功能是将电能转换成液压能(压力油),并将压力油输送到各液压执行机构，实现钻机的各种功能。泵站通过电动机驱动双联齿轮油泵转动，产生两路压力油，通过操纵台上的多路换向阀，分别向钻机动力头回转油路和给进油路供油，实现钻机动力头的回转和给进。

Pump is composed of motor, double gear oil pump, oil tank, the overflow valve, fine, coarse oil filter, a cooler and a base and other components. Its function is to convert electrical energy into hydraulic energy (oil pressure), and the pressure oil into the hydraulic actuator, realize all kinds of function of drilling rig. Pump is driven by the motor double gear pump rotation, resulting in two oil pressure, through the manipulation of multiple directional control valve on the stage, respectively to the drill power head of rotary oil and feed feed circuit, realize the drill power head of rotary and feed.

2.3 动力头（ZDY02-0）

2.3 power head (ZDY02-0)

动力头主要由液压马达、主轴、动力头壳体及水辫等零部件组成。其功能是将液压能转换成回转运动的机械能，实现钻机动力头的回转。压力油驱动动力头液压马达回转，马达输出轴通过主轴带动水辫中的水辫轴回转，从而带动钻具旋转。水辫的作用是向钻杆传递动力和通水（或压风）以便排渣和冷却钻头。

The power head is mainly composed of a hydraulic motor, spindle power, shell and water braid and other parts. Its function is to make the hydraulic energy into rotary motion of the mechanical energy, realize the drill power head of rotary. Pressure oil to drive the hydraulic motor rotary power head, the motor output shaft through the spindle drive shaft rotary water water braid braid in the drilling tool is driven to rotate, thereby. Water swivel function is to transfer power and water to the drill pipe (or air) to discharge and cooling the drill bit.

2.4 机架（ZDY03-0）

The 2.4 frame (ZDY03-0)

机架主要由机架体、给进油缸、拖板、夹持器等零部件组成。其功能是将液压能转换成往复运动的机械能，压力油驱动给进油缸带动拖板上的动力头（动力头固定在拖板上）沿导轨作往复运动，从而带动钻具给进。夹持器由操作杆、连板、夹杆板、底座、轴承座、夹持器体等组成，用于钻杆的装、卸。

The frame is mainly composed of a machine frame body, feeding cylinder, plate, clamping device and other parts. Its function is to make the hydraulic energy is converted into the reciprocating motion of the mechanical energy, pressure oil to drive the feeding oil cylinder drives the carriage of the head (the power head is fixed on the carriage) for reciprocating movement along the guide rail, which drives the tool feed. The holder of an operating bar, connecting plate, clamping plate, a base, a bearing seat, the holder body etc, used for unloading, drill pipe.

2.5 立柱框架（ZDY04-0）

The 2.5 column framework (ZDY04-0)

立柱框架主要由立柱、横梁、机架座、吊梁、旋转管卡等零部件组成。其功能是将钻机固定安装好，使钻机在施工中不发生移动。立柱主要由千斤顶、下固定盘、内支撑管、外支撑管等组成，锚固在巷道或钻场顶底板之间，起支撑和稳固钻机的作用。横梁用于安装机架和调整钻机倾角，机架座用于调整钻机方位角，旋转管卡等用于将立柱与机架连接成整体，起稳固钻机的作用，增加钻机工作时的稳定性。

Column framework is mainly composed of columns, beams, the frame seat, hanging beam, rotating pipe and other parts. Its function is to drill is fixed, the movement does not occur in construction. The column is mainly composed of a hoisting jack, the lower fixed disk, inside supporting tube, the outer support tube etc., anchoring in the tunnel or the drill field between top and bottom, supporting and stable drilling effect. The beam frame and adjust the angle for drilling rig, rack mount is used to adjust the drilling azimuth angle, rotating clamp for the column and the frame are connected into a whole, hold the drill rig, and increase the stability when working.

2.6 操纵台（ZDY05-0）

2.6 console (ZDY05-0)

操纵台主要由操纵台架、多路换向阀、节流阀、压力表、快换接头等零部件组成。其功用是通过操纵多路换向阀实现钻机的各种动作，对钻机实行集中控制。多路换向阀分别控制油马达的正、反转，给进油缸的正常进退和快速进退。操纵台右边压力表指示动力头回转压力，左边压力表指示给进压力。节流阀可调节钻机动力头给进速度。操作合流阀可将大泵的大流量压力油与小泵压力油合并至给进油缸，可实现动力头快速进退（油缸快速移动时，油马达不工作）。

The console is mainly composed of a control platform, multi way reversing valve, throttle valve, pressure gauge, quick change joint and other parts. Its function is realized through various action rig control multi way reversing valve, centralized control of drilling rig. Positive, reverse directional valve respectively controls the oil motor, feeding cylinder normal development and rapid advance and retreat. Console the right indication of pressure gauge head rotary pressure, the pressure indicator give into pressure. Throttle valve adjustable drill power head feed speed. Combined valve operation can be large flow pressure oil pump and oil pump pressure into the feeding cylinder, can realize the dynamic head of rapid advance and retreat (oil motor does not work oil cylinder to move fast,).

2.7 钻具（ZDY06-0）

The 2.7 tool (ZDY06-0)

钻具主要由钻杆和钻头等零部件组成。

Mainly by the drill pipe and the drill bit and other parts.

钻杆直径为φ42mm或φ50mm，长度为800mm，亦可根据用户要求制作。钻杆采用圆锥梯形螺纹连接，具有强度高、拆装容易、对中性好等优点。

Drill pipe diameter of 42mm or 50mm diameter, 800mm length, can also be made according to the requirements of users. Drill pipe with cone trapezoid thread connection, high strength, easy disassembly and assembly, the advantages of the neutral good.

钻头为三翼硬质合金组合钻头，直径分为φ65mm中心钻头，φ87mm二级钻头和φ115mm三级钻头（或φ75mm中心钻头，φ95mm二级钻头和φ130mm三级钻头），可单独使用φ65mm（或φ75mm）中心钻头，也可将二级钻头和中心钻头组合使用。

Bit three wing hard alloy combined drill diameter φ 65mm, divided into the center drill, φ 87mm two bit and three bit (φ 115mm φ 75mm φ or bit, 95mm two bit and three bit 130mm diameter), can be used with 65mm alone (or 75mm) center drill, can also be two bit and bit combina
